Description
2018 CAT Lift Trucks GC40K
When hard-working manufacturing, industrial and commercial applications look for material handling performance, they look to cat lift trucks. From food and beverage plants to chemical processing and textile mills E3000�E6500 lift trucks offer the reliability advantages required in these demanding applications.
Financing Availble
We can help with delivery – FREE DELIVERY IN DALLAS FORT WORTH
Specifications
General
- Manufacturer: CAT Lift Trucks
- Type: Forklifts / Lift Trucks
- Category: Electric 4 Wheel Sit Down

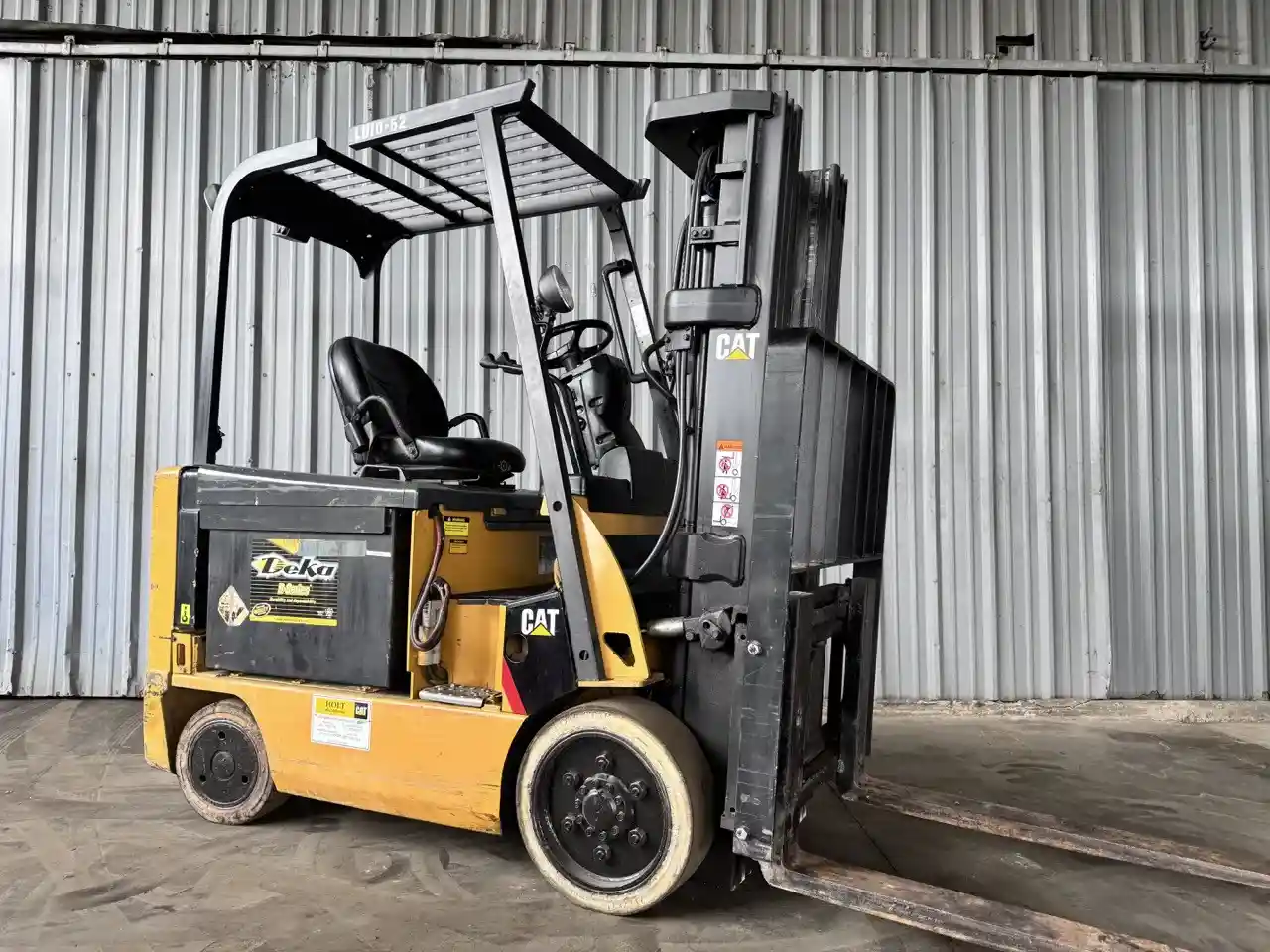

- Model: E5500 36V
- Year: 2009
- Stock Number: MEC 7866
- Serial: A4EC330205
- Hours: 3,602
- CDL Required
- Power Steering: Yes
Operational
- Tires: Cushion
Front: 21 x 8 x 15 in. (533 x 203 x 381 mm)
Rear: 16 x 5 x 10.5 in. (406 x 127 x 267 mm) - Capacity: 5,500 lbs. (2,500 kg)
- Wheels: Front: 2 (driven)
Rear: 2 - Max. Lift Height: 188 in. (4,790 mm)
- Operator Type: Sit Down Rider
- Carriage: Class 2 with Side Shift
- Right Angle Stack: 94 in. (2,385 mm)
- Lower Speed: Empty & Rated Load:
98 fpm (0.5 m/s) - Lift Speed: Empty / Rated Load:
106 / 55 fpm (0.54 / 0.28 m/s) - Axle Load: Empty (Front / Rear):
3,550 / 5,900 lbs. (1,610 / 2,675 kg)
Rated Load (Front / Rear):
13,100 / 1,890 lbs. (5,900 / 870 kg) - Travel Speed: Empty / Rated Load:
10.6 / 9.3 mph (17 / 15 km/h) - Forks: Length x Width x Thickness:
42 x 3.9 x 1.6 in. (1,070 x 100 x 40 mm) - Load Center: 24 in. (600 mm)
Battery
- Battery Voltage: 36V
- Battery Compartment Size: Length x Width x Height:
34.4 x 39.5 x 23.3 in. (875 x 1,003 x 592 mm)
Engine Drive train
- Drive Control: AC transistor
- Brakes: Method of Control: Foot, service / hand, parking
Method of Operation: Hydraulic, service / mechanical, parking - Engine Type: Electric
